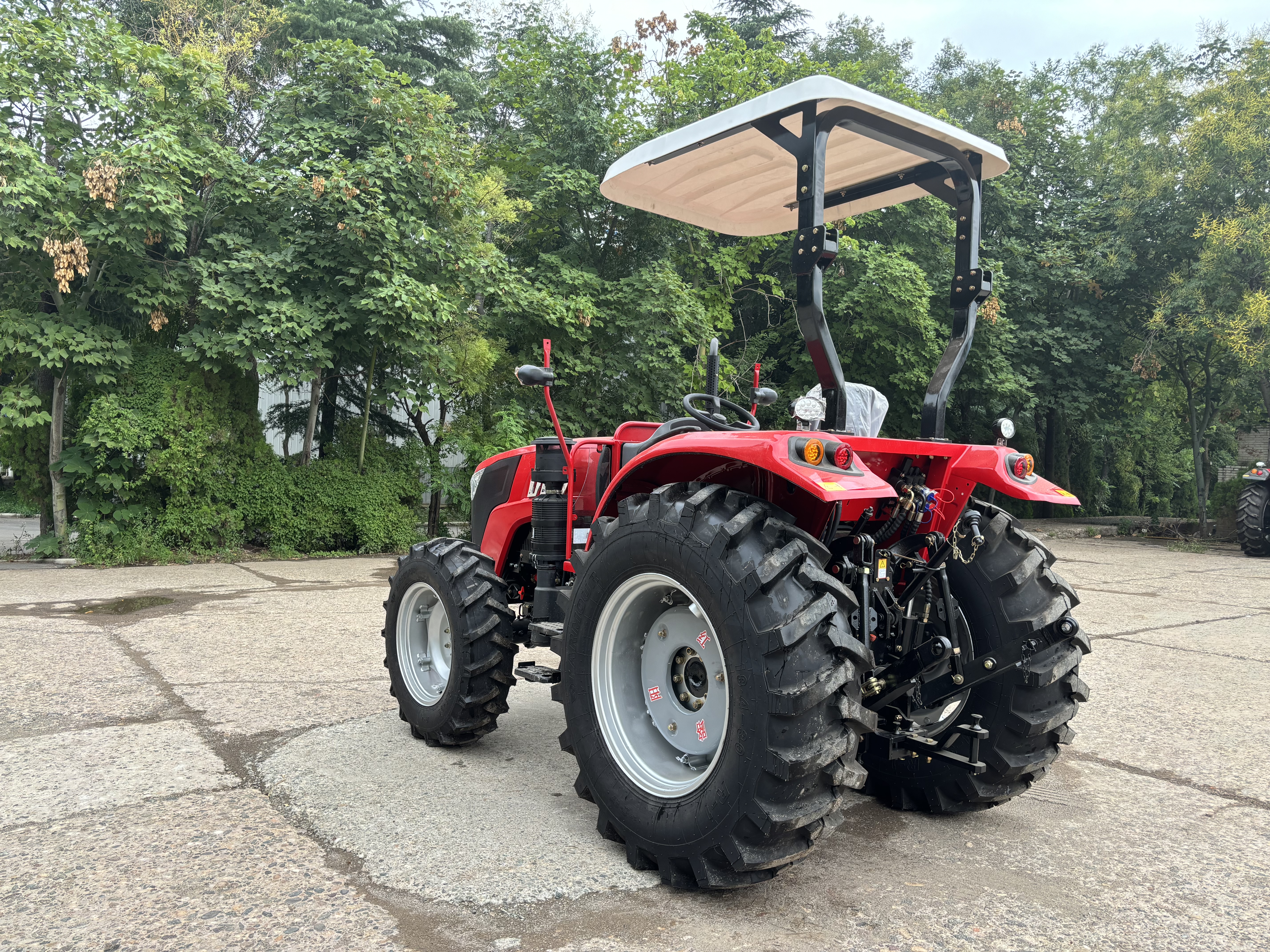

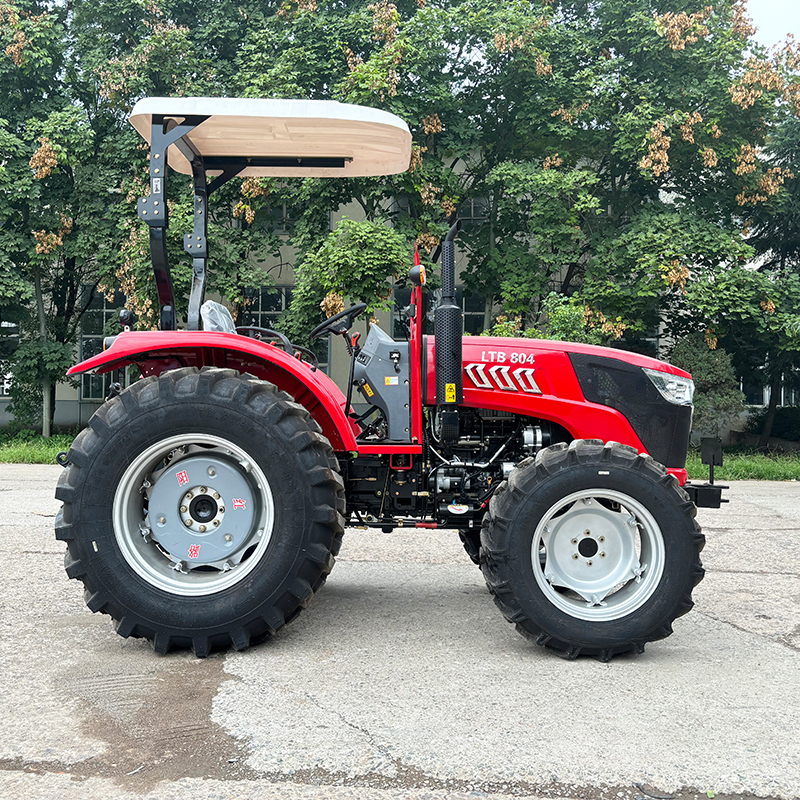

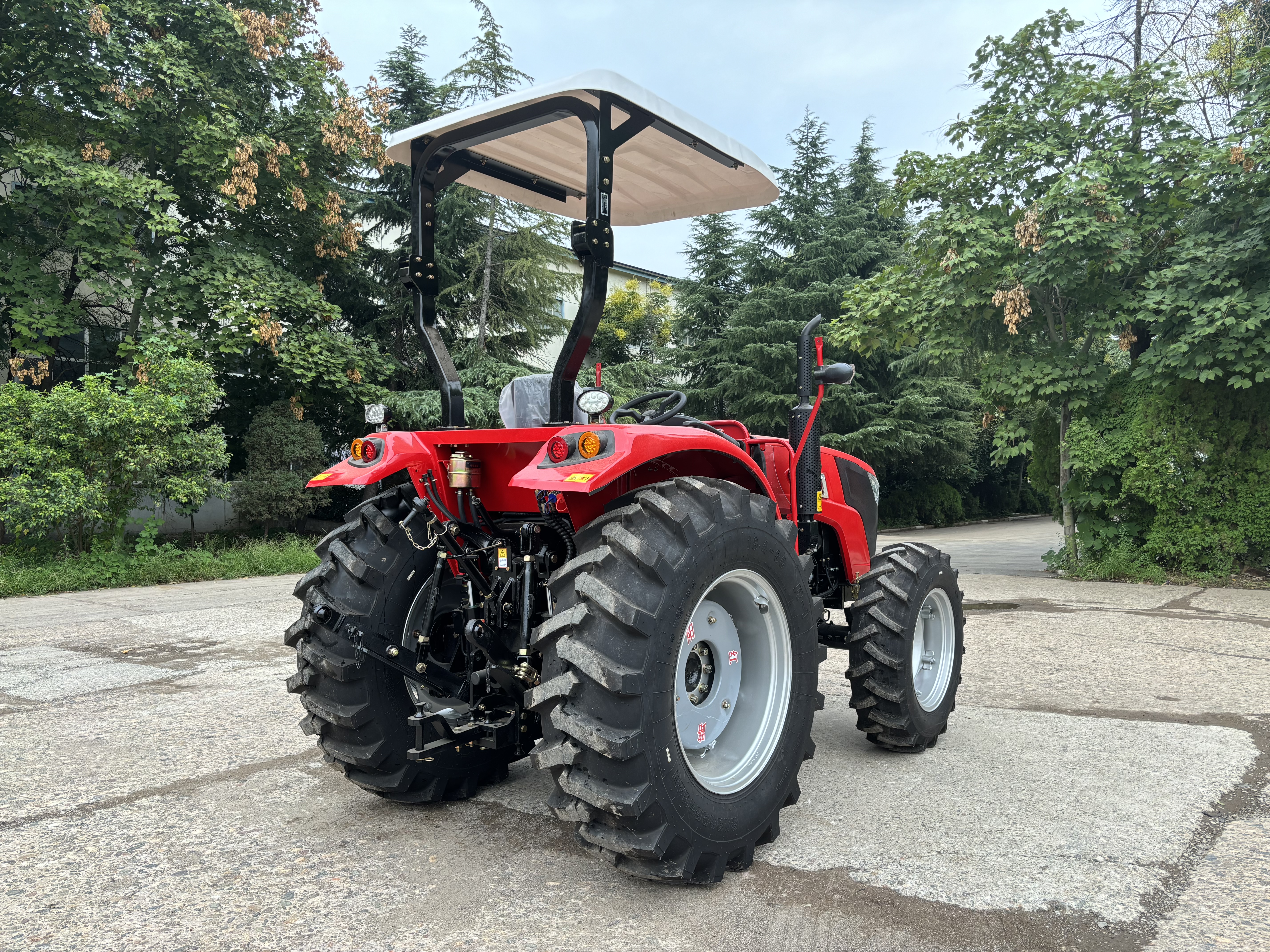

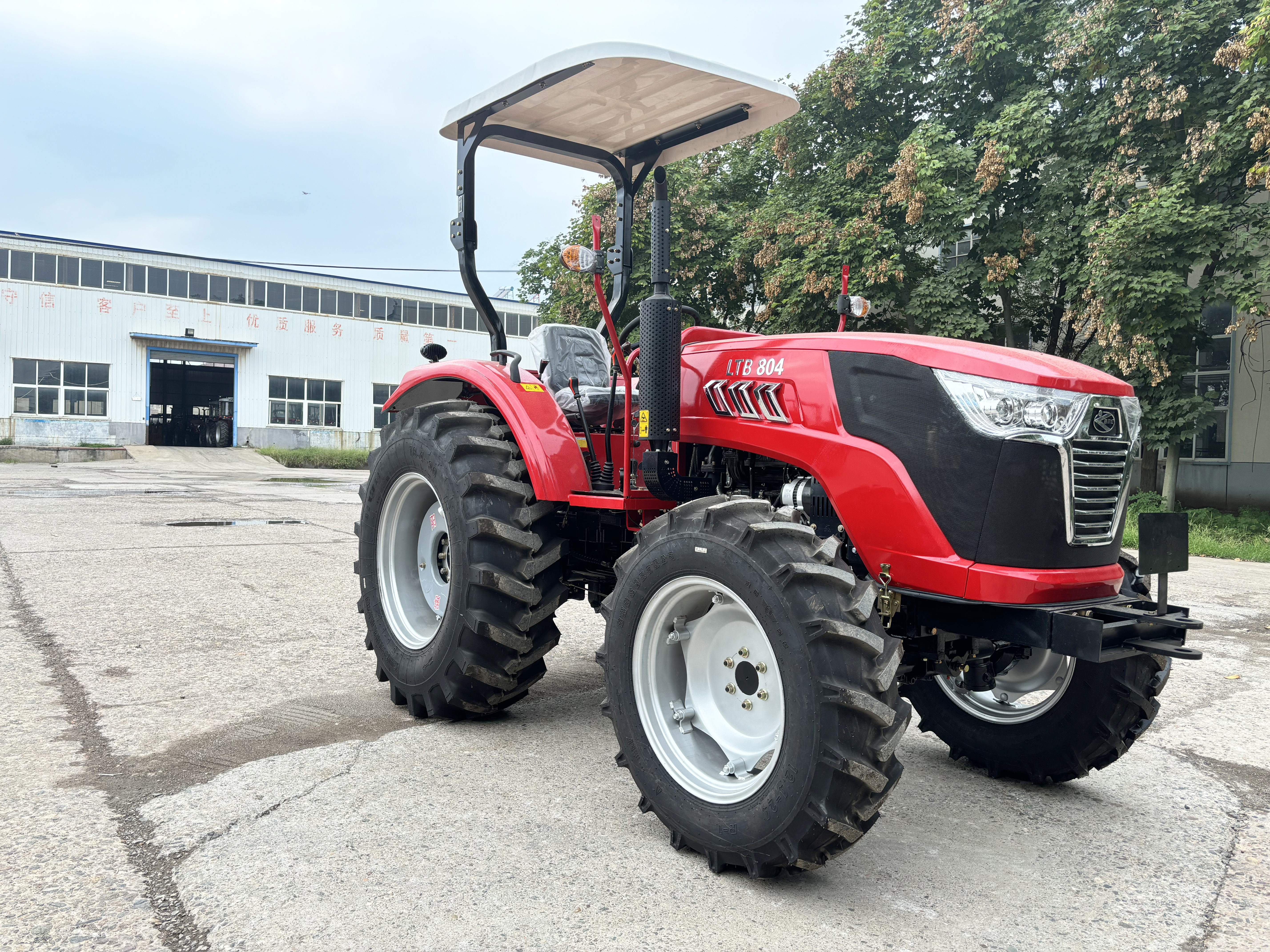

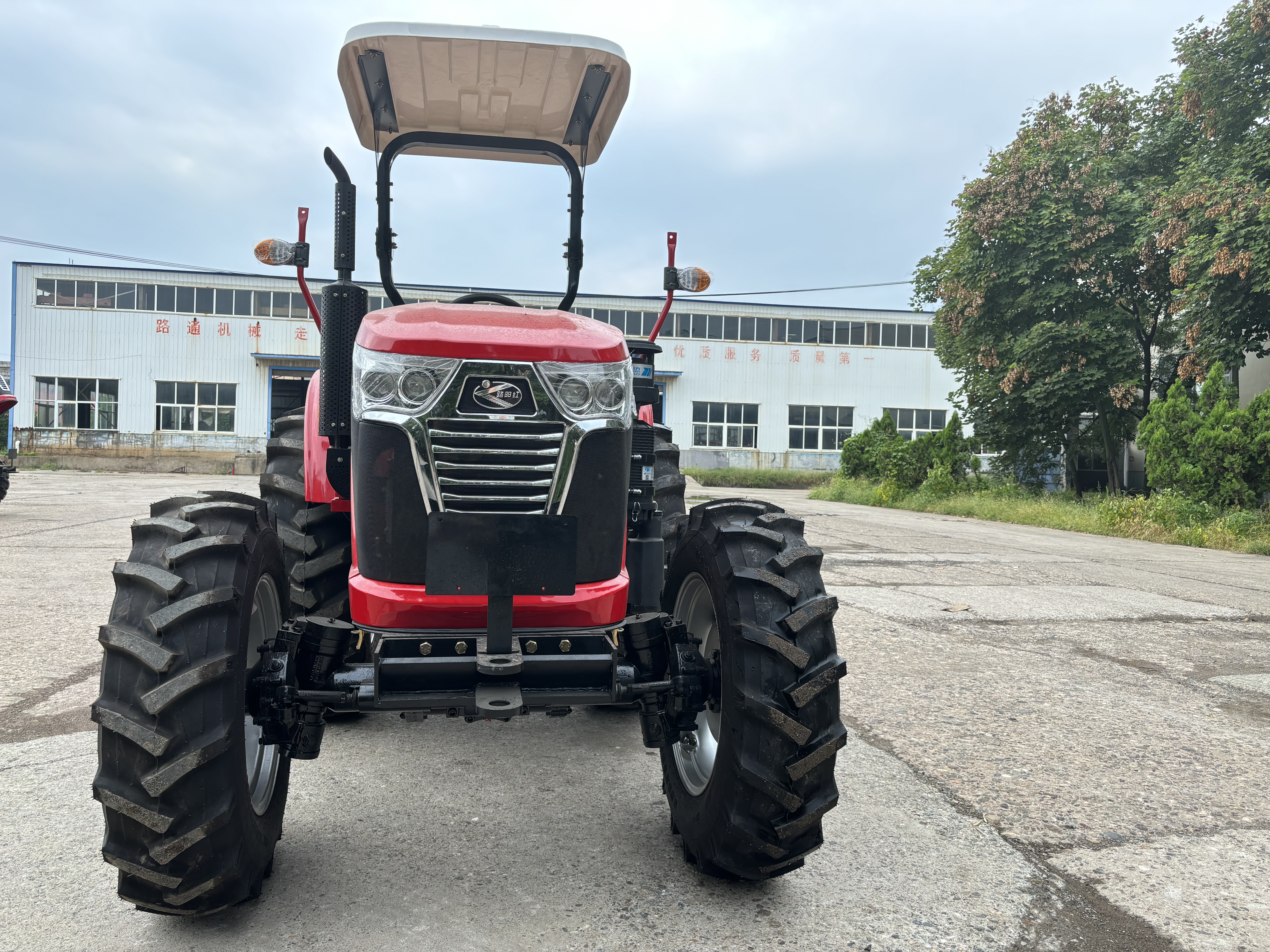

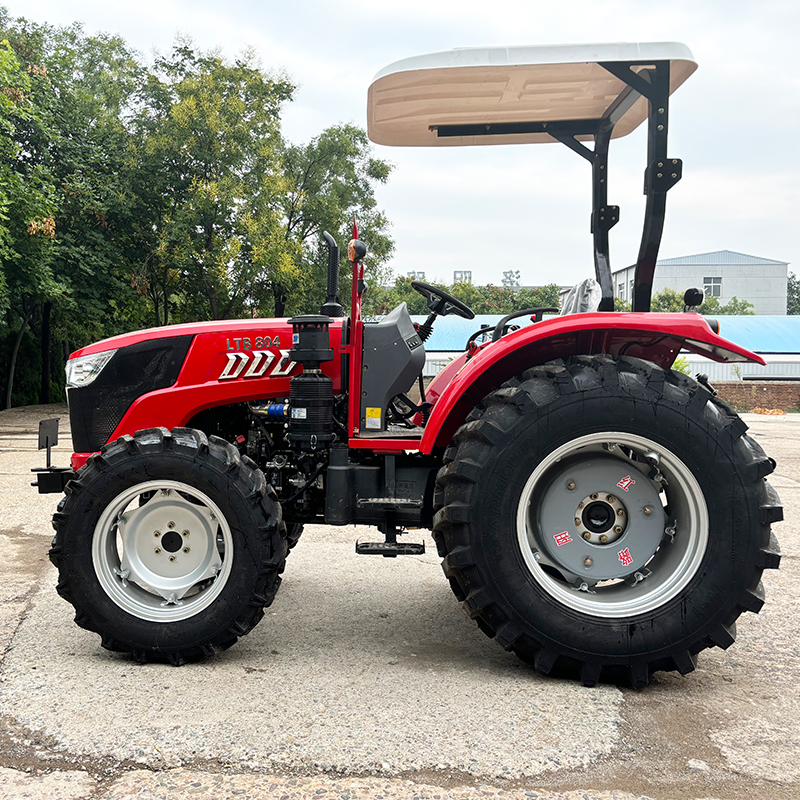

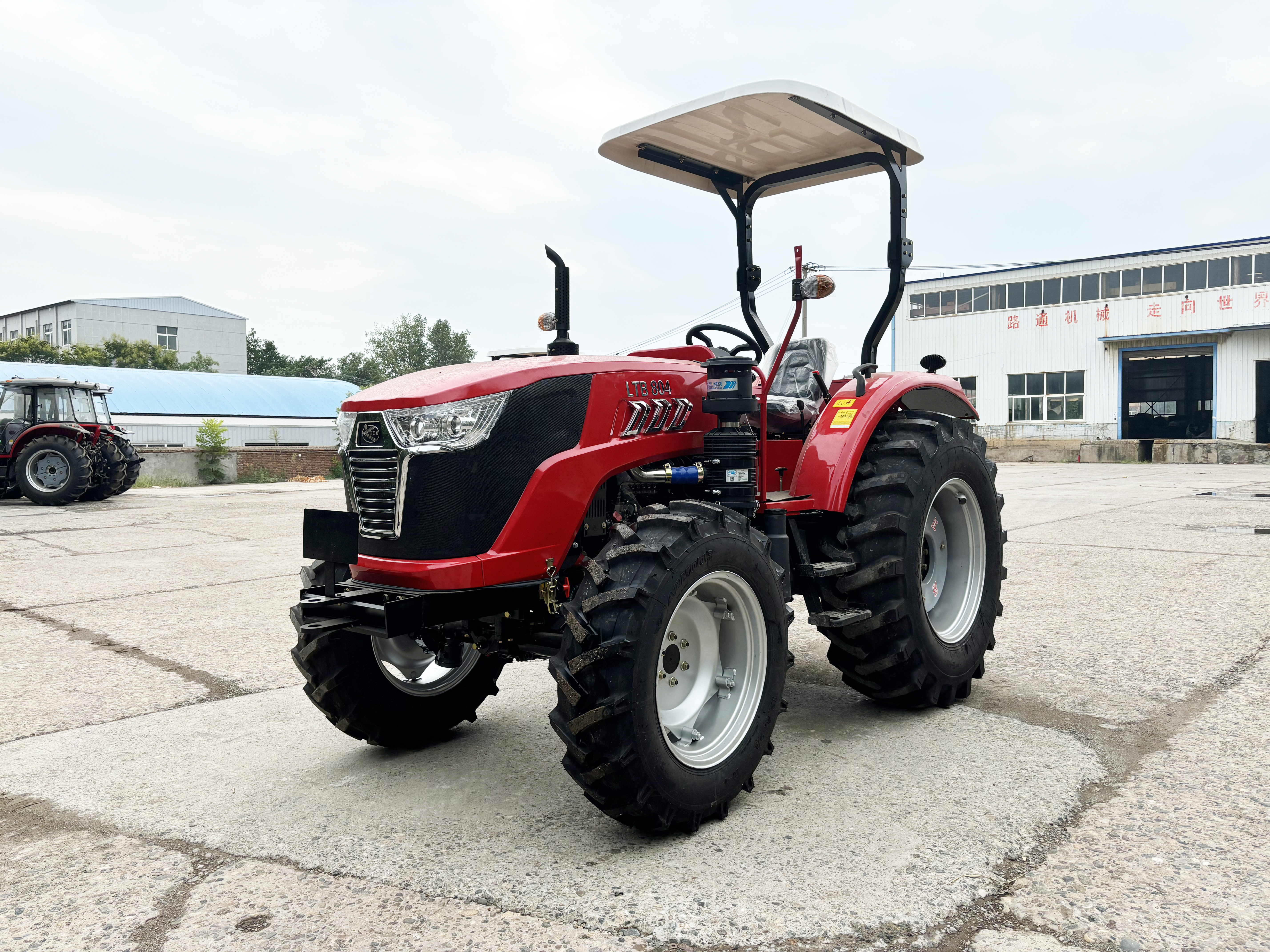

LTB804 80HP High Quality Produced New Model Tractor Agriculture Mini Tractor for Farming Tractor Machines

LTB804 80HP High Quality Produced New Model Tractor Agriculture Mini Tractor for Farming Tractor Machines

Content details

Technical Features

Strong motive power

1.Optional for Quanchai diesel engine series, adapt to the needs of different regions.

High reliability

1.Imported high strength powder metallurgic clutch plate.reliable transmission.

2.Independent oil circuit of hydraulic system. high cleanliness and low failure rate.

3.Reinforced chassis structure, stable and reliable performance.

Efficient operation

1.Adopts 4x3x (1+1) compound transmission,12F+12Rgear, shuttle shift, side control, easy to operate.

2.Vertical double oil cylinder high pressure lifter. large lifting force and good operation adaptability.

3.Increase the volume of diesel tank to meet the requirements of long-term operation.

Comfortable operation

1.Flat panel console, shuttle shift under the steering wheel,reasonable man-machine engineering.

2.Full hydraulic steering system, flexible and comfortable operation.

3.Optional for cab. comfortable driving space.

	Model	LTB804
Tractor Parameters	Drive Type	4WD
	Overall Dimension(mm)	4070×1700×2870
	Min. operating weight(kg)	2720
	Rated traction force(kN)	19.99
	Wheel tread (front/rear)	1265/1350
	Wheel base(mm)	2030
	Min. ground clearance(mm)	370
	Min. Turning Radius(mm)	≤4.3
	Theoretical Speed(forward)	2.41~30.96
	Theoretical Speed(reverse)	2.04~27.14

Engine Specification	Engine model	Quancai 4C6-80U32
	Engine Model	Vertical, water cooled, four stroke, direct injection
	Number of cylinders	4
	Engine Rated speed(r/min)	2400
	Engine Rated power (Kw)	59

	Clutch	Single,dry type,dual-function
	Gear box	4×3×(1+1)
	Main drive	Spiral bevel gearing
	Differential	Closed, 4 planeatry bevel gears
	Differential lock	Mechanical locking differential
	Final drive	Single planeatry gear

Traveling Mechanism	Tyre(front)	8.3-24
	Tyre(rear)	11-32
	Steering gear	Front wheel hydraulic steering
	Brake	Wet type, disc brake

Working Device	PTO Speed (r/min)	540/760
	PTO Spline Size	φ38mm 8 splines-φ38mm
	Max. lifting force( kN )	14.16
	3-Point suspension	Category:II

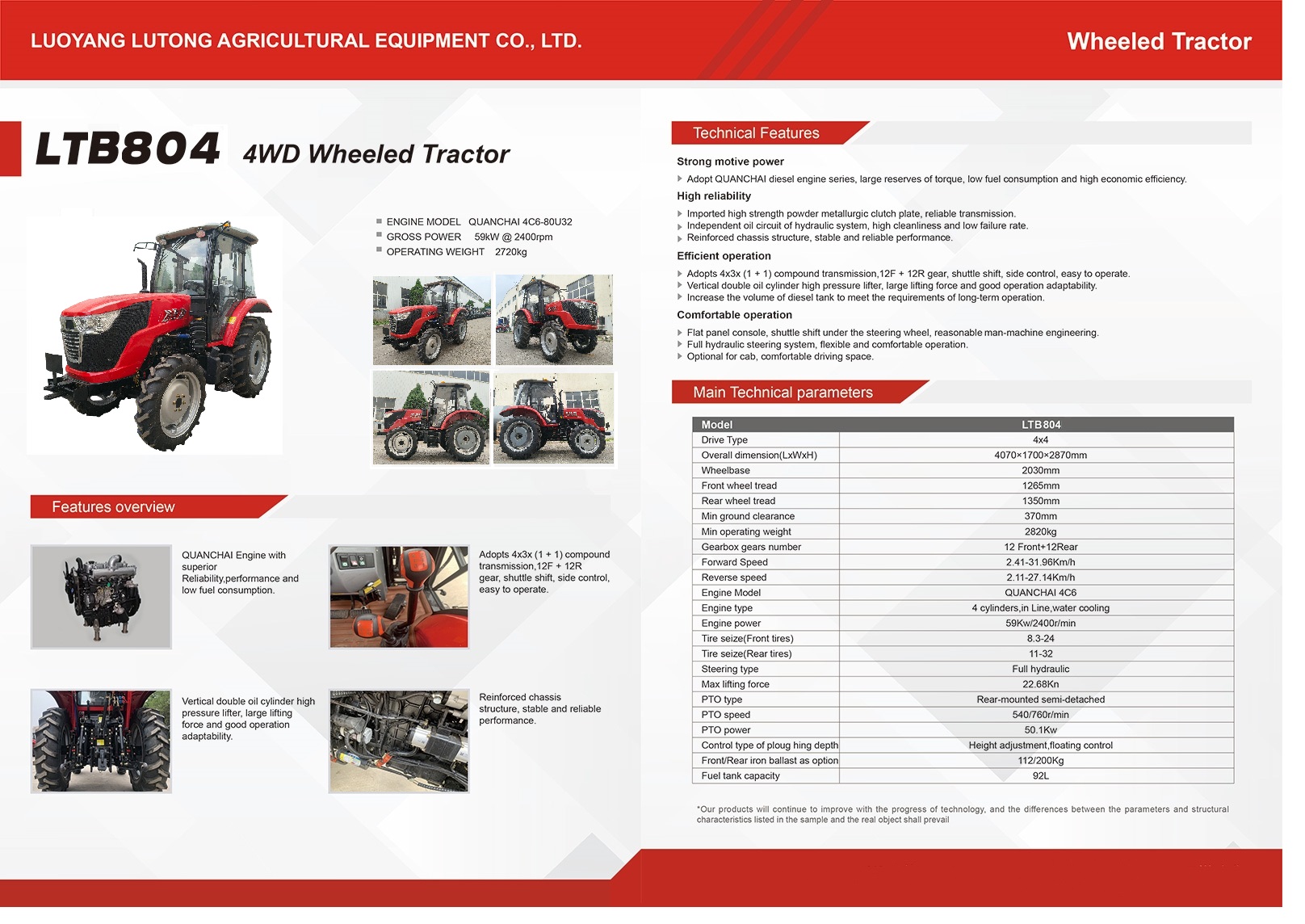

LTB804 单品红色彩页.jpg
