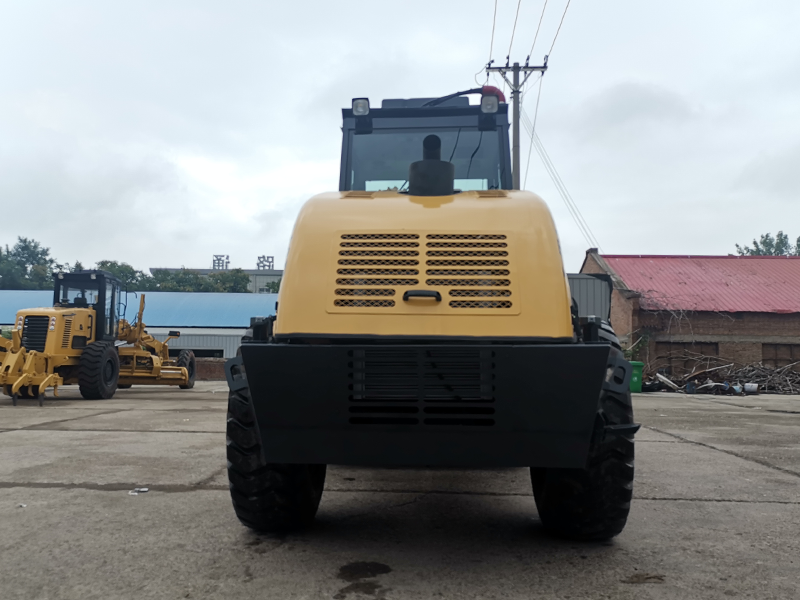

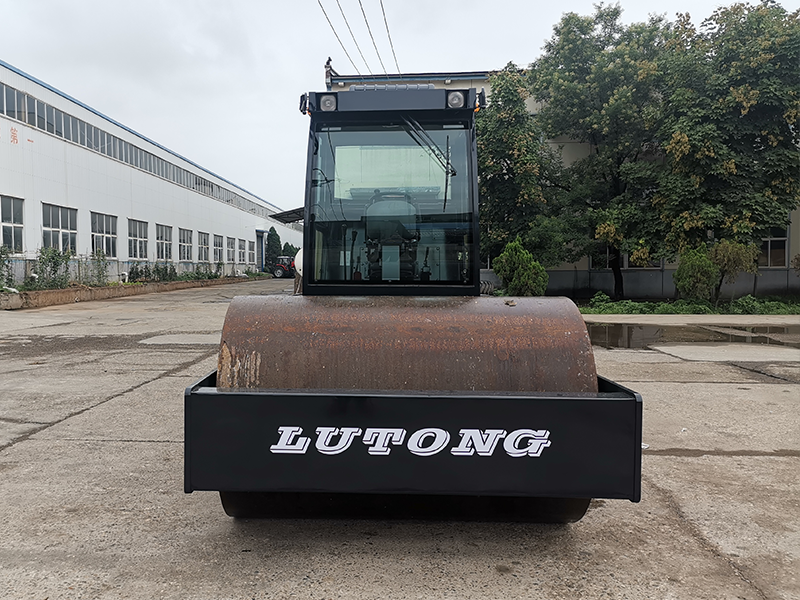

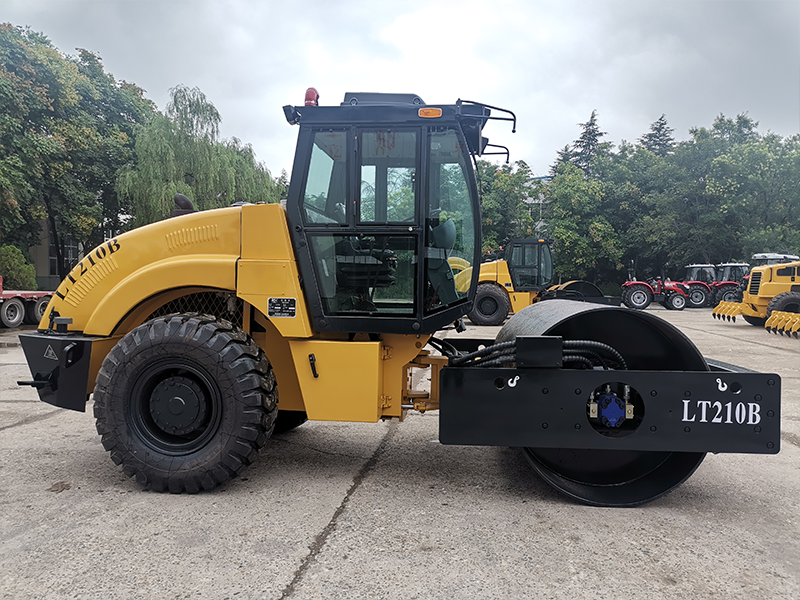

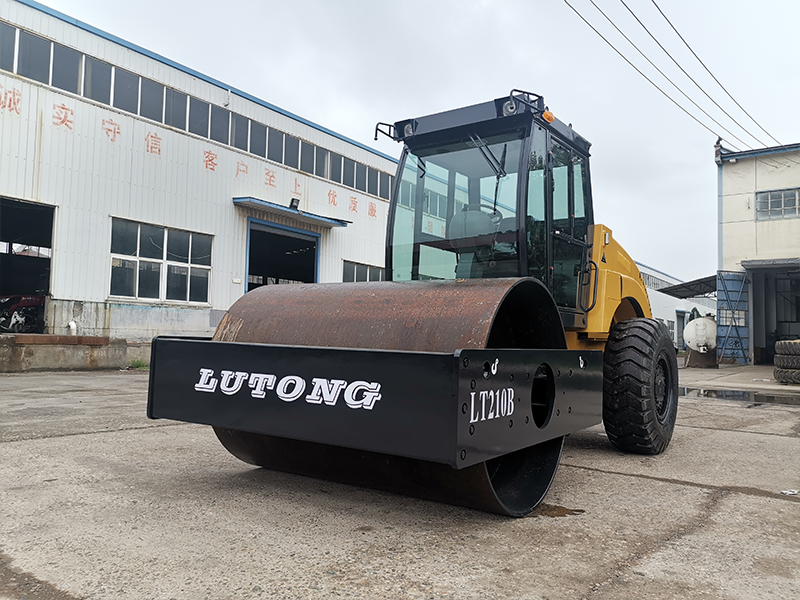

LT210B ( 2WD, 10T ) Mechanical drive single drum vibratory road roller

Short Description:

Mechanical heavy duty single drum vibratory rollers effect powerful centrifuga force and great static linear load, are suitable for non-cohesive materials, such as sandy soil, gravel, crushed stones, rock fillings and slightly cohesive soils, designed for large foundation constructions such as high-class highways, mines, dams, airports, harbours, railways and industrial areas etc.

Operating mass: 10000kg
Overall dimensions: 5650×2280×3000mm
Engine model: CUMMINS 6BT5.9

CONTACT NOW

Content details

MAIN FEATURES

01Mechanical travel drive, double amplitude, hydraulic vibration and steering with optimal function/price ratio and reliable performance.

02Reliable CUMMINS diesel engine for convenient operation and maintenance.

03Two sets of brake devices, a hand brake and foot pedal brake, assure the machine's safety and dependability.

04Spacious and comfortable cab mounted on top quality rubber damping elements.

05World advanced technology is adopted for the hydraulic vibration technology, high in reliability, simple and convenient in maintenance, and low in cost.

06Equipped with padfoot or removal padfoot as option.

Main technical parameter

MODEL		LT210B
Operating mass	kg	10000
Static linear load	N/cm	245
Vibrating amplitude	mm	1.6/0.8
Vibrating frequency	Hz	30
Centrifugal force	KN	250/150
Travel speed
1st gear	km/h	2
2nd gear	km/h	4
3rd gear	km/h	10.5
Grade ability	%	30
Drum rim thickness	mm	24
Overall dimension	mm	5650×2280×3000
Ground clearance	mm	360
Diesel model		CUMMINS 6BT5.9
Diesel power	KW	97
Tyre Size		17.5-25
Vibration round width	mm	2100
Wheelbase	mm	3060
Fuel tank capacity	L	220
Hydraulic tank capacity	L	190
