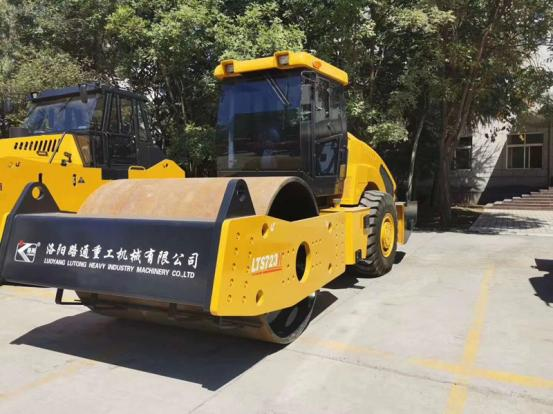

The Lutong LTS723H full‑hydraulic single‑drum vibratory roller is built for diverse job‑sites including municipal projects, road construction and mine sites, delivering dependable compaction performance for varied working conditions.

Compaction Performance

Equipped with high‑amplitude vibratory drum, the machine provides amplitude settings of 1.9 mm / 0.95 mm and maximum excitation force of 410 kN / 300 kN. It achieves considerable compaction depth with consistent compaction results and working efficiency, suitable for compaction of non‑cohesive soils and base materials. The 2130 mm wide drum offers sufficient coverage to support stable construction quality.

Power and Hydraulic System

Power options include Cummins B5.9CS4 and Shangchai SC7H Stage‑IV diesel engines with rated power of 140 kW. Ample power reserve enables stable operation at altitudes up to 4000 m above sea‑level.

Hydraulic pumps and motors are supplied by internationally‑recognized brands. The hydraulic system delivers smooth operation under harsh site conditions, supporting machine reliability and service life.

Operation and Safety Features

The full‑hydraulic single‑drive configuration ensures smooth compaction progress. Power‑off brake prevents indentations during start‑stop cycles and reduces rework requirements for enhanced operational safety.

Two‑range stepless speed adjustment allows operators to set travel speed according to site specifications. Variable‑frequency and variable‑amplitude vibration reduces frequent clutching, shifting and braking operations, lowering operator fatigue and improving operating comfort.

Operator Cabin and Optional Intelligence

Spacious operator cabin is fitted with ergonomic seating and broad field‑of‑view for clear site monitoring. An intelligent compaction management system is available as an option to accommodate multiple working scenarios. The cabin is equipped with UV‑resistant glass and air‑conditioning to improve comfort during high‑temperature operations.

Maintenance and Environmental Performance

Machine layout facilitates routine inspection and service, helping reduce maintenance costs and minimize downtime. Adopting Stage‑IV emission technology, the unit meets applicable environmental standards with competitive fuel consumption and emission levels.

Working Conditions and Application Scope

This roller is applicable for non‑cohesive materials such as gravel, crushed stone, sand‑gravel mixtures and sandy soils, as well as compaction for selected concrete‑related materials, with proven adaptability to high‑altitude environments.

It is widely deployed for highways, mine roads, large‑scale dams, port facilities and industrial sites. It also fits municipal roads, highway maintenance, trench foundations, building backfill, pipeline backfill and sports‑ground projects, and can operate in confined spaces where large compaction equipment cannot work efficiently.

With broad application coverage and stable compaction capability, the LTS723H full‑hydraulic single‑drum vibratory roller provides reliable compaction support for general engineering projects.
