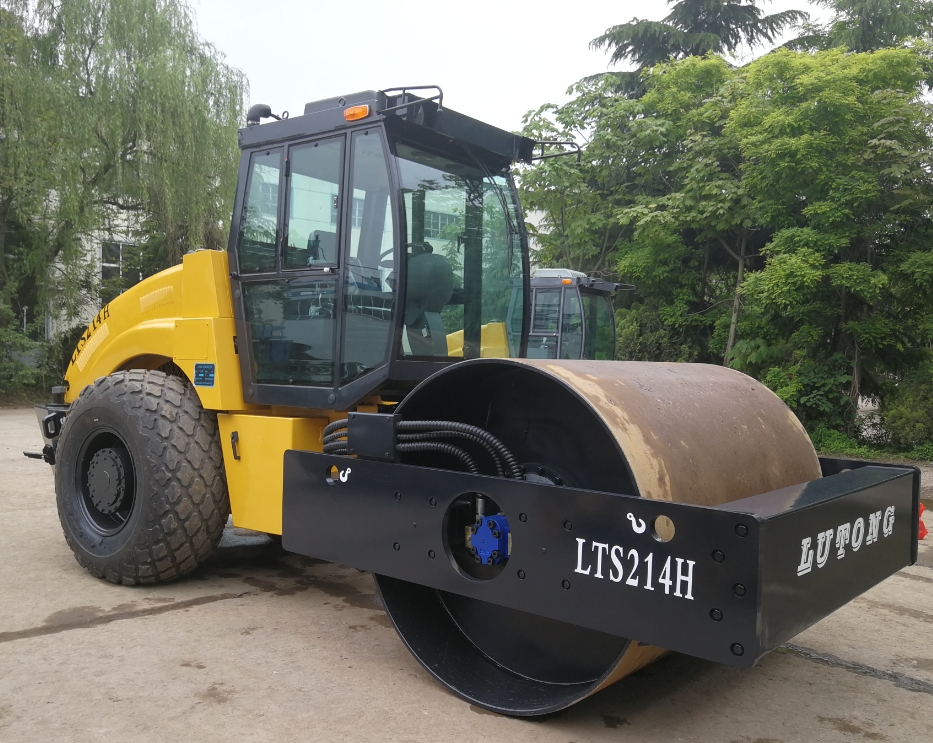

Built with mature R&D technology and solid equipment configuration, the LTS214H full hydraulic single drum vibratory roller focuses on the core demands of engineering compaction. Featuring stable power output, sophisticated hydraulic systems and versatile adaptability to diverse working conditions, it provides reliable compaction support for various infrastructure projects. Adhering to the R&D philosophy of practicality, high efficiency and easy maintenance, the equipment balances operating efficiency, construction quality and overall operation cost, suitable for a wide range of construction scenarios.

1. Reliable Power Configuration for Complex Working Conditions

       The LTS214H roller is equipped with a Cummins 6BT5.9 turbocharged diesel engine with a rated power of 110kW at 2200rpm. It delivers sufficient power reserve to support construction at altitudes above 4,000 meters, adapting to low pressure and low temperature environments in plateau areas. Fully validated by long-term market applications, the power unit operates steadily with favorable fuel economy. It supports continuous operation in diverse field and complex sites while meeting energy-saving and environmental protection requirements.

2. Advanced Hydraulic System for Stable Performance & Easy Operation

       The whole machine adopts a complete full hydraulic control system, including hydraulic single drive, hydraulic vibration and hydraulic articulated steering, matched with a dedicated drive axle for rollers to enhance overall operation stability. The travel system is equipped with imported core components such as plunger pumps, motors, high-pressure pipelines and joints, while the vibration system adopts gear pumps from well-known joint-venture brands, ensuring dependable quality and low failure rate.

       Calibrated to fit conventional construction operation habits, the hydraulic system features simple operation and low learning difficulty. It ensures uniform and stable compaction, effectively improving the flatness and compactness of construction surfaces.

3. Optimized Performance Parameters for Diversified Compaction Tasks

       The machine is designed with dual vibration gears. The amplitude is adjustable between 1.7mm and 0.8mm, with corresponding vibration frequencies of 29Hz and 35Hz, and excitation forces of 290KN and 180KN respectively. It can be flexibly adjusted according to different construction materials including soil, sand, gravel and varied compaction standards, meeting customized process requirements and refined compaction operations.

       With excellent overall working performance, the machine achieves a maximum travel speed of 12km/h and a gradeability of 30%. It delivers superior site accessibility for terrains with slopes and uneven surfaces, enabling continuous and efficient construction to accelerate project progress.

4. Human-Centered Design for Easy Maintenance & Enhanced Safety

       The cab adopts a humanized layout with an intuitive operation interface and flexible, precise control mechanisms. Operators can monitor equipment status in real time and complete accurate compaction operations to improve construction precision.

       The whole machine features a reasonable structural layout and modular design for core components. Simplified disassembly, inspection and replacement procedures effectively reduce maintenance time and operational costs, ensuring high equipment availability.

       Equipped with comprehensive safety systems, the roller adds a fuel cut-off brake device on the basis of conventional braking systems. It enables rapid braking in unexpected working conditions, greatly improving operational safety and providing reliable protection for operators and equipment.

5. Versatile Application for Full-Scale Infrastructure Projects

       Capable of compacting conventional and special materials such as soil, sand, stone and gravel stably, the LTS214H roller exhibits outstanding stability and adaptability. It is widely applicable to highway, urban main and secondary road, and rural road construction, as well as ground hardening for industrial sites, parking lots and factory floors, effectively improving ground compactness, bearing capacity and service life of projects.

       In addition, the equipment is suitable for supporting compaction operations in large-scale infrastructure projects including bridges, tunnels and ports. With stable compaction performance and high working efficiency, it supports standardized construction and delivers solid quality assurance for infrastructure projects.

6. Product Overview

       Featuring robust power configuration, advanced hydraulic technology, optimized performance parameters, humanized design and wide application adaptability, the LTS214H full hydraulic single drum vibratory roller serves as a core and reliable device for infrastructure compaction. It balances high working efficiency, stable performance, low maintenance cost and high safety, adapting to various small, medium and large-scale compaction projects. It empowers efficient and high-quality infrastructure construction across diverse scenarios.
