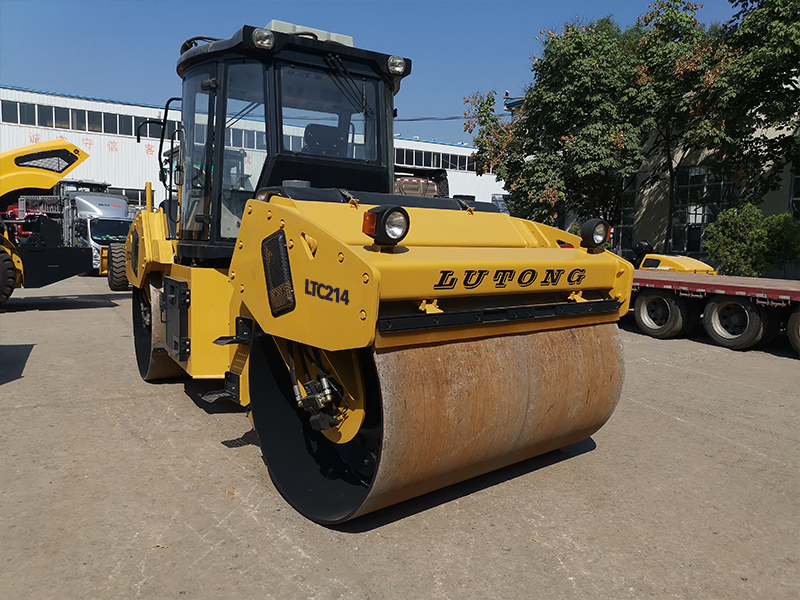

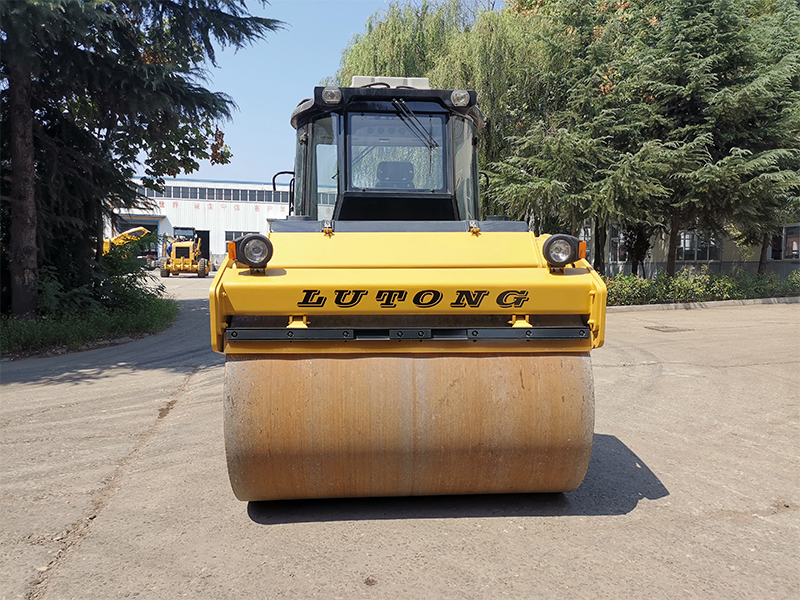

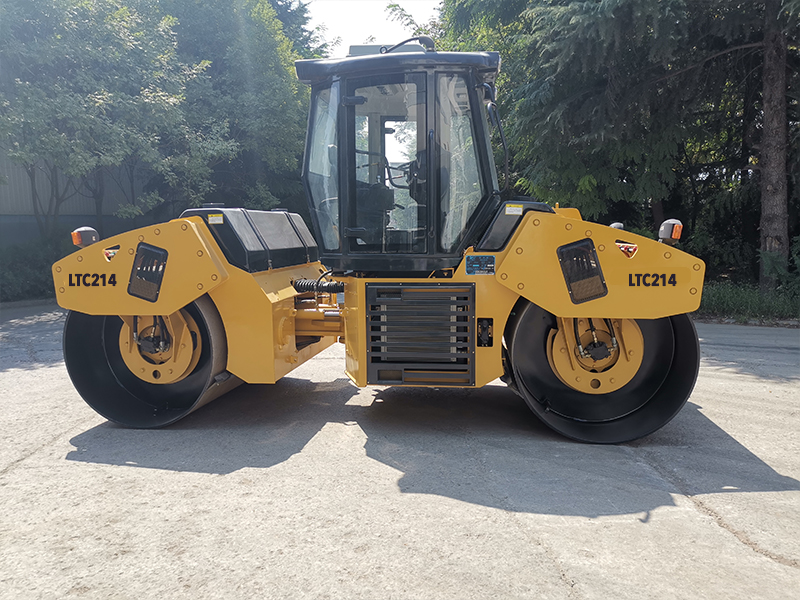

LTC214 ( 14T ) Hydraulic Double Drum Compactor Road Roller
MAIN FEATURES
01Full hydraulic two wheel drive and vibration.
02Double frequency double viration system.
03Hydrostatic center articulated steering,Optional unique crab agency.
04Cabin with air conditooner,comfortable and spacious,the flexible steering seat facilicates the operation.
05The driver's cabin can be turned on one side as a whole, to facilitate maintenace.
06Fork-type frame,good hold-down property.
07Hydraulic pump and vibrating motors are of the products made by American manufacturer SAUER or German manufacturer REXROTH.
Main technical parameter
MODLE | LTC214 | |
Operating mass | kg | 14000 |
Front axle load | kg | 7000 |
Rear axle load | kg | 7000 |
Static linear load | N/cm | 333 |
Form of frame | Fork-type | |
Water tank capacity | L | 2×600 |
Fuel tank capacity | L | 154 |
Hydraulic tank capacity | L | 65 |
Vibration frequency | mm | |
High ampl. | 0.8 | |
Low ampl. | 0.4 | |
Vibration frequency | Hz | |
High ampl. | 40 | |
Low ampl. | 46 | |
Centrifugal force | kN | |
High ampl. | 160×2 | |
Low ampl. | 90×2 | |
Travel speed | km/h | 0-12 |
Turning radius | mm | 7000 |
Grade ability | % | 40 |
Steering angle | ° | ±30 |
Drum diameter | mm | 1350 |
Drum width | mm | 2100 |
Transverse swing angle of the vibrating wheel | ° | ±8 |
Type of water spray | mm | Pressure |
Wheelbase | mm | 3717 |
Overall length | mm | 5060 |
Overall width | mm | 2250 |
Overall height | mm | 3300 |
Ground clearance | mm | 324 |
Diesel model | Cummins 6BT5.9 | |
Diesel power | kw | 110 |
Diesel speed | r/min | 2300 |
