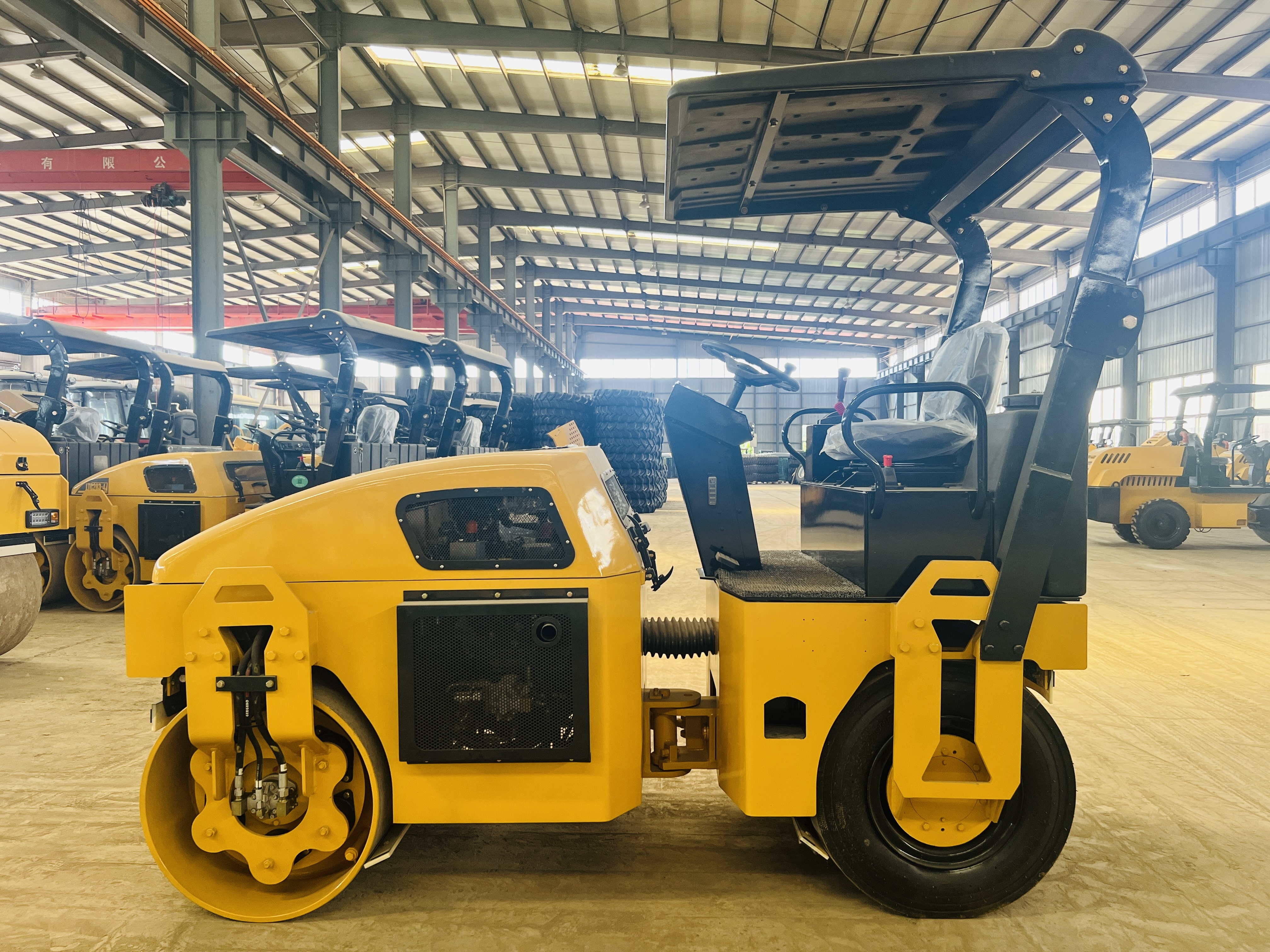

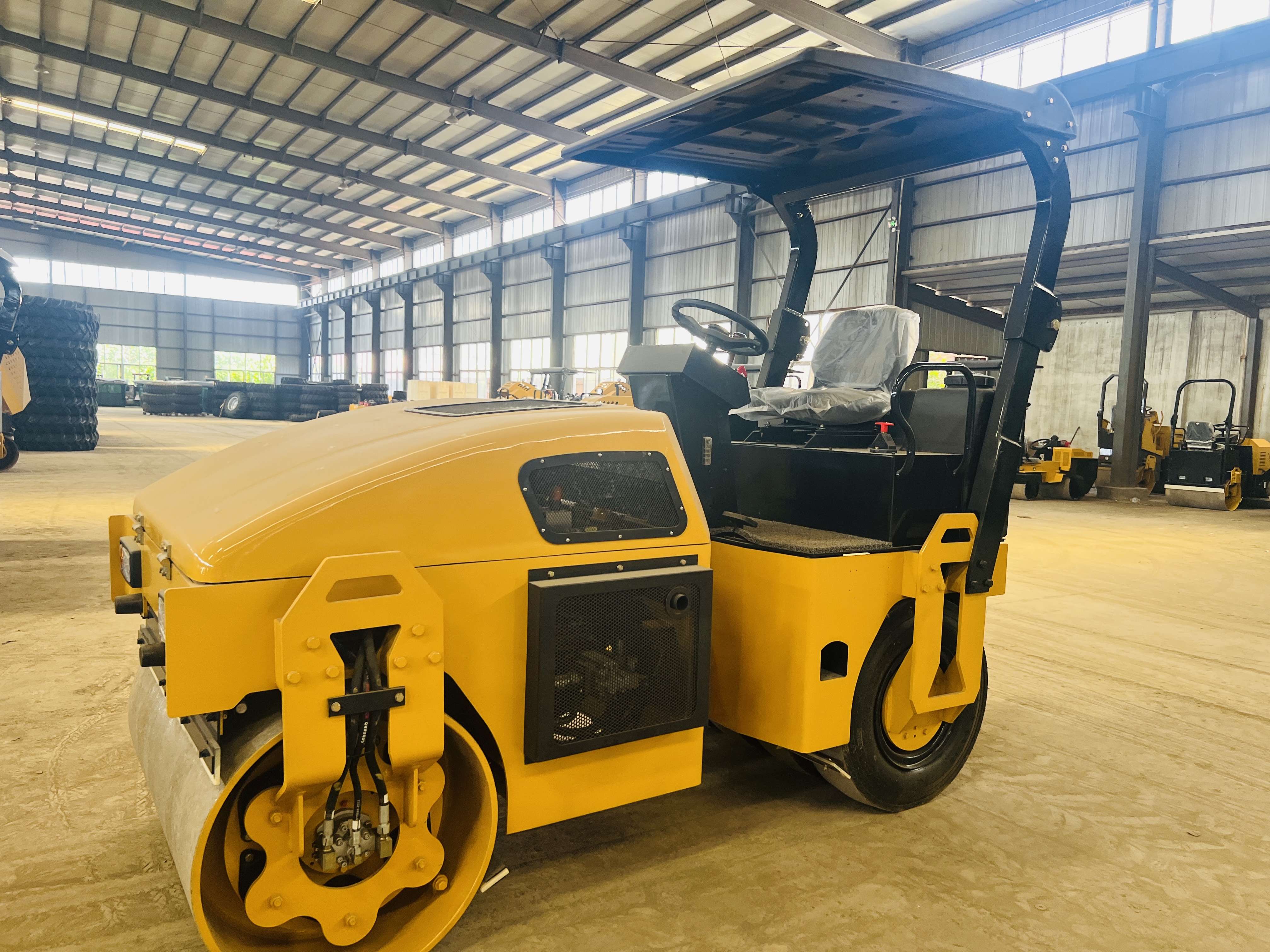

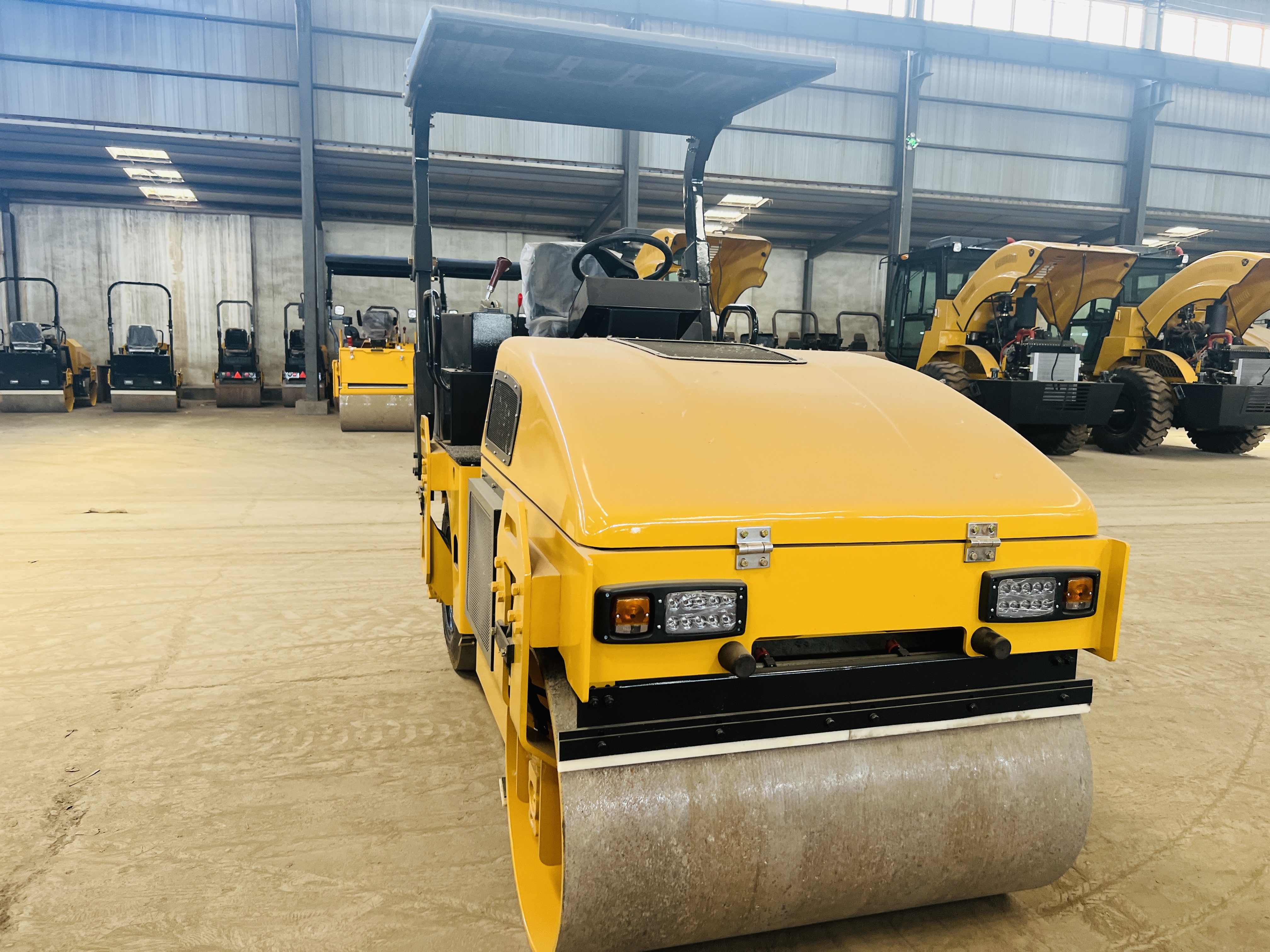

LTC204P ( 4 Tons ) Tire Combined Hydraulic Vibratory Road Roller

Short Description:

LTC203/LTC204 Hydraulic double drum vibratory roller. LTC203P/LTC204P Tire combined hydraulic vibratory roller. LTC203/LTC204 series vibratory roller, applicable for the maintenance of the municipal road as well as suitable for the compaction of the narrow road surfaces such as groove foundation ,building construction ,pipeline backfill and stadium.


Content details

MAIN FEATURES

▲Hydraulic double wheels drive,hydraulic front drum vibration and steering ,with reliable performance and optimum function ratio；
▲LTC204P hydraulic front and rear wheels drive ,hydraulic front drum vibratory；
▲Both front and rear wheels have scraping and water spray unit,advanced sprinkler pump system can achieve intermittent ,greatly expanded mechanical proper working condition；
▲Adopt ZN390B diesel engine,Energy conservation and environmental ,very convenient for use and maintenance；
▲Compact integral structure,small volume ,capable of used for compaction on narrow site ,with small investment ,quick return of good economic；

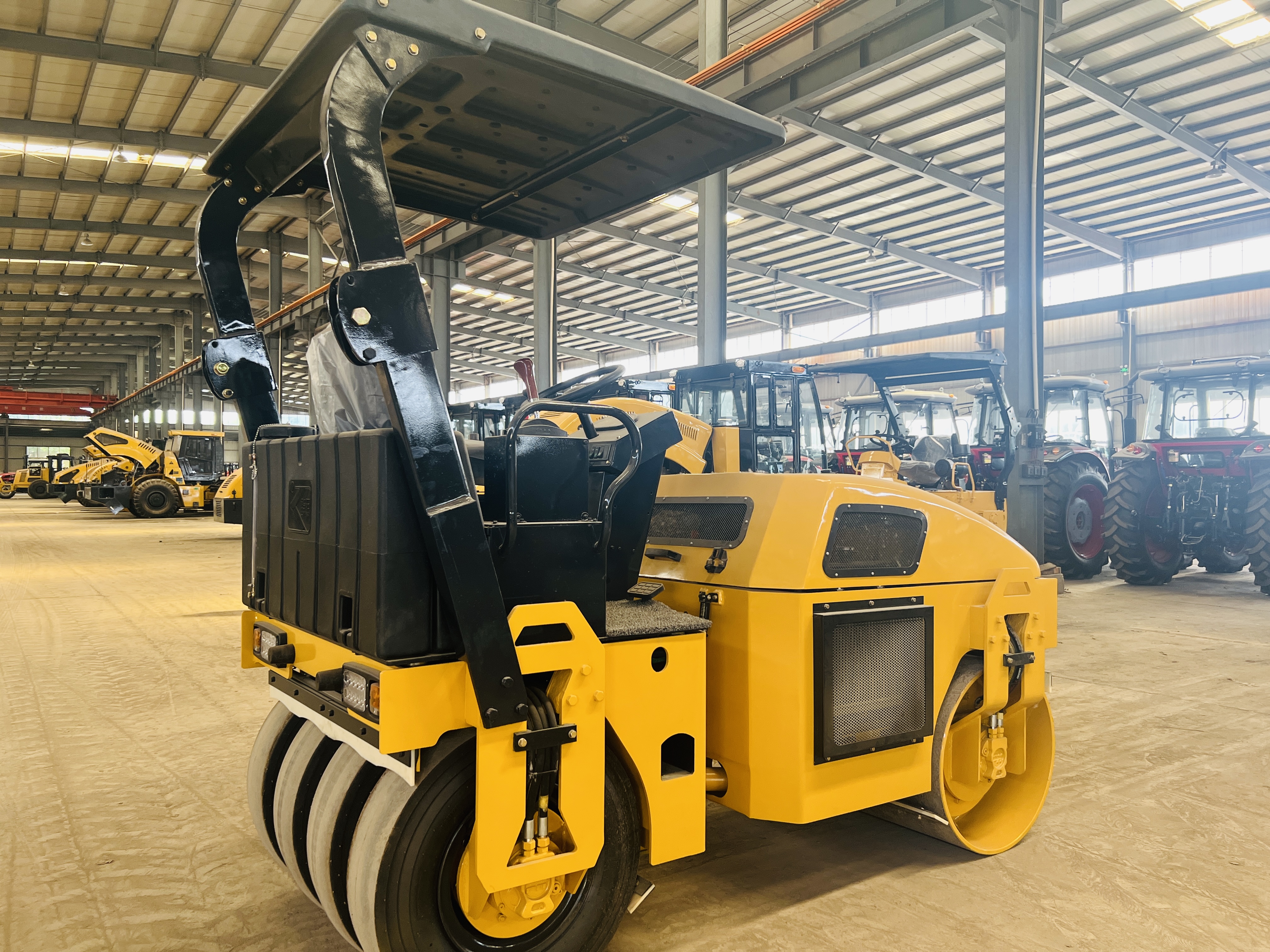

▲LTC204P rear wheel adopts combination of four slick tires,and has double function,of wheel roller and tire roller,which can effectively improve the rolling quality of asphalt pavement ,and improve the climbing ability；
▲LTC204P walking more stable ,damping effect；

▲LTC204P High-end seats,has greatly enhanced operator comfort ,reduce fatigue.


Main technical parameter


MODEL


LTC204P

Operating mass

kg

3800

Static linear load (F/R)

N/cm

150/200

Vibratory frequency

mm

0.5

Centrifugal force

KN

30

Vibration frequency

kZ

50

Travel speed

Km/h

0-12

Grade ability

%

25

Steering angle

。

+26

Overall dimension

mm

2900×1400×2520

Drum diameter

mm

700

Drum width

mm

1300

Wheelbase

mm

2010

Diesel engine power

kW

26.5

Diesel engine model


ZN390B

Water tank capacity

L

200

Quantity of rear tire

pcs

4

Specification of rear tire

/

7.50-15
