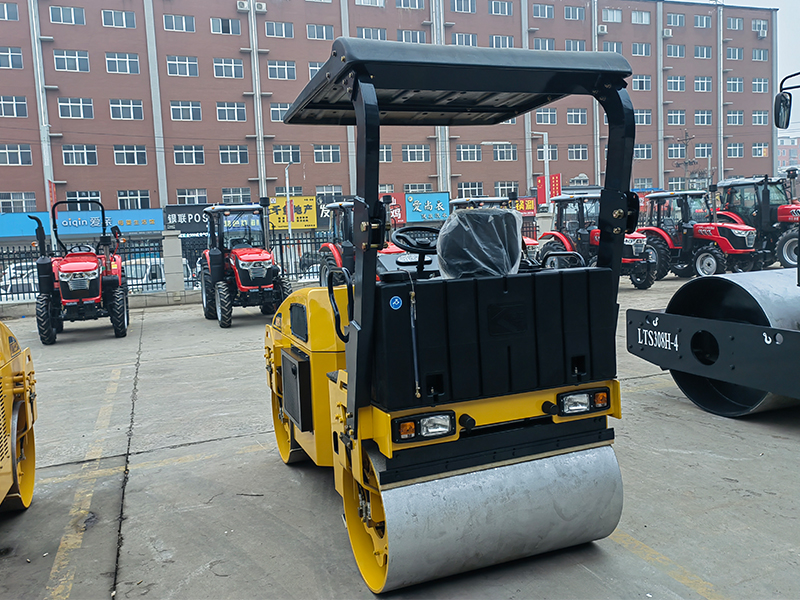

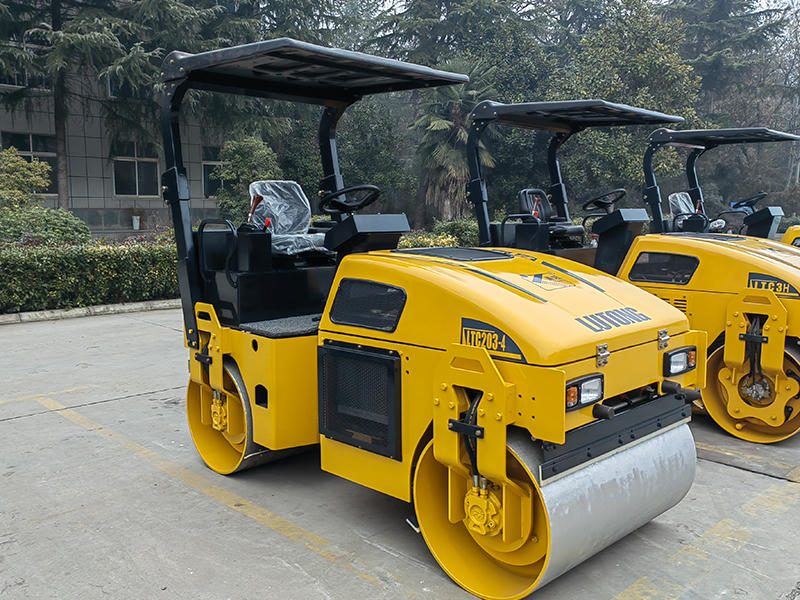

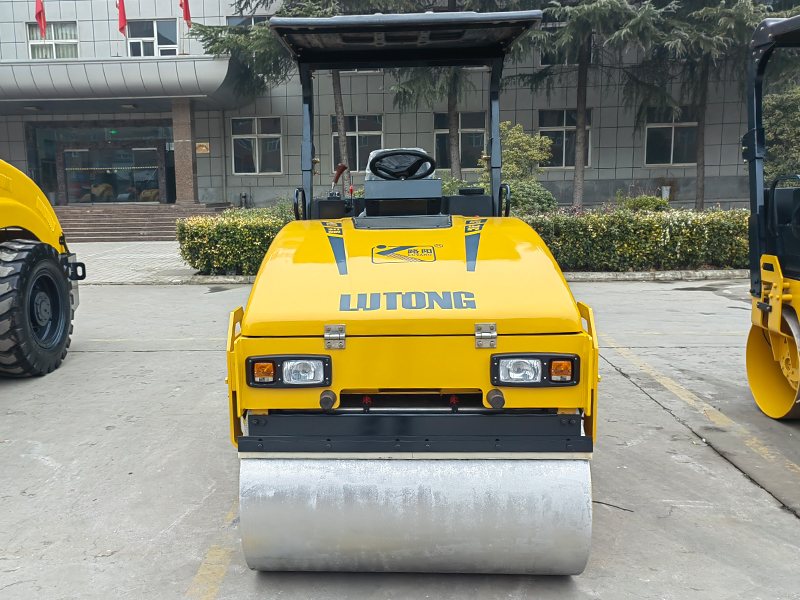

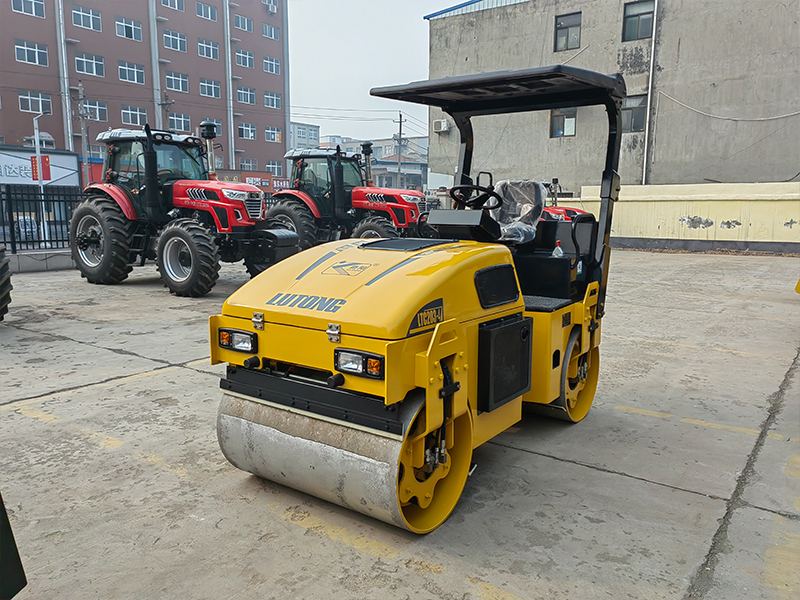

LTC203 ( 3T ) Hydraulic Double Drum Road Roller

Short Description:

LTC203/LTC204 Hydraulic double drum vibratory roller. LTC203P Tire combined hydraulic vibratory roller. LTC203 series vibratory roller, applicable for the maintenance of the municipal road as well as suitable for the compaction of the narrow road surfaces such as groove foundation ,building construction ,pipeline backfill and stadium.


Content details



MAIN FEATURES

▲Hydraulic double wheels drive,hydraulic front drum vibration and steering ,with reliable performance and optimum function ratio；
▲LTC203P hydraulic front and rear wheels drive ,hydraulic front drum vibratory；
▲Both front and rear wheels have scraping and water spray unit,advanced sprinkler pump system can achieve intermittent ,greatly expanded mechanical proper working condition；
▲Adopt ZN390B diesel engine,Energy conservation and environmental ,very convenient for use and maintenance；
▲Compact integral structure,small volume ,capable of used for compaction on narrow site ,with small investment ,quick return of good economic；
▲LTC203P rear wheel adopts combination of four slick tires,and has double function,of wheel roller and tire roller,which can effectively improve the rolling quality of asphalt pavement ,and improve the climbing ability；
▲LTC203P walking more stable ,damping effect；

▲LTC203P High-end seats,has greatly enhanced operator comfort ,reduce fatigue.


Main technical parameter




MODEL


LTC203

Operating masskg3400
Static linear loadN/cm130/130
Vibration frequencymm0.5/0.5
Centrifugal forceKN2*30
Vibration frequencykz50
Travel speedKm/h0-12
Grade ability%30
Steering angle。+26
Overall dimensionmm2760*1400*2520
Drum diametermm700
Drum widthmm1250
Quantity of rear tirePic/
Specification of rear tire
/
Wheelbasemm2010
Diesel powerKw23
Diesel model
ZN390Q
Water tank capacityL165
