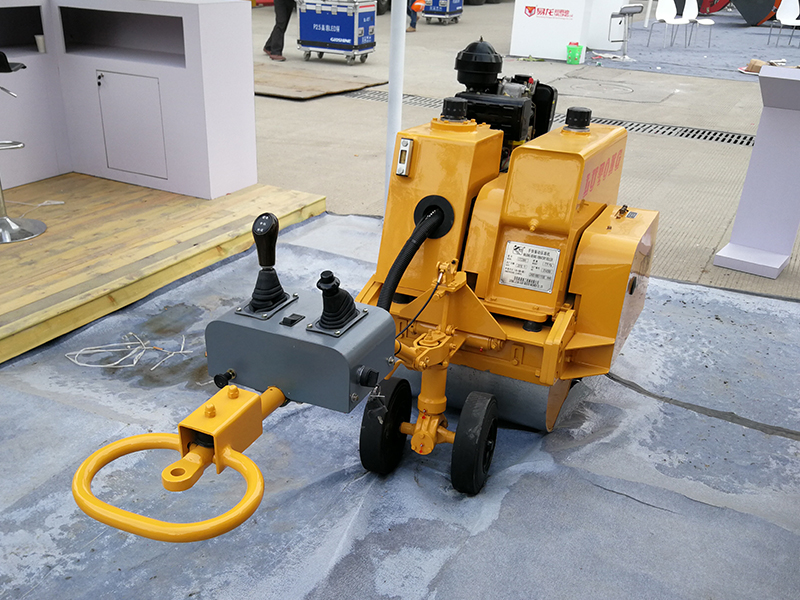

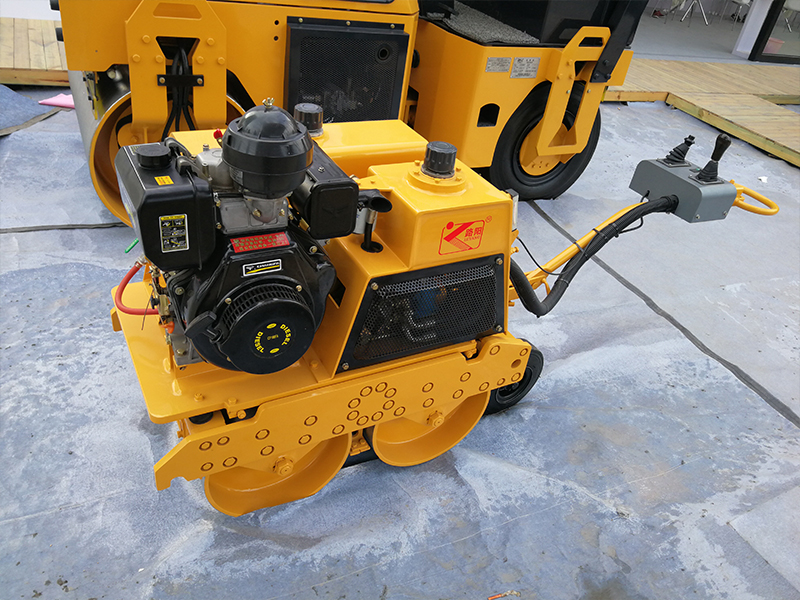

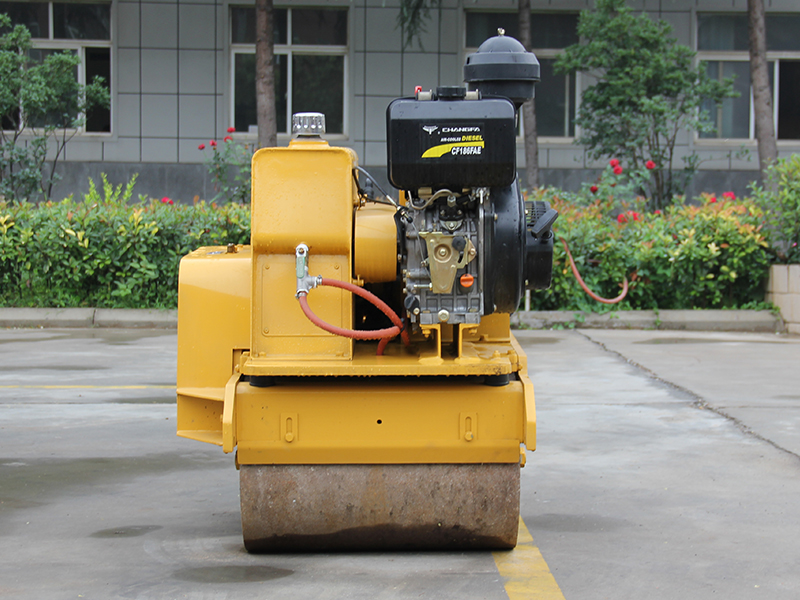

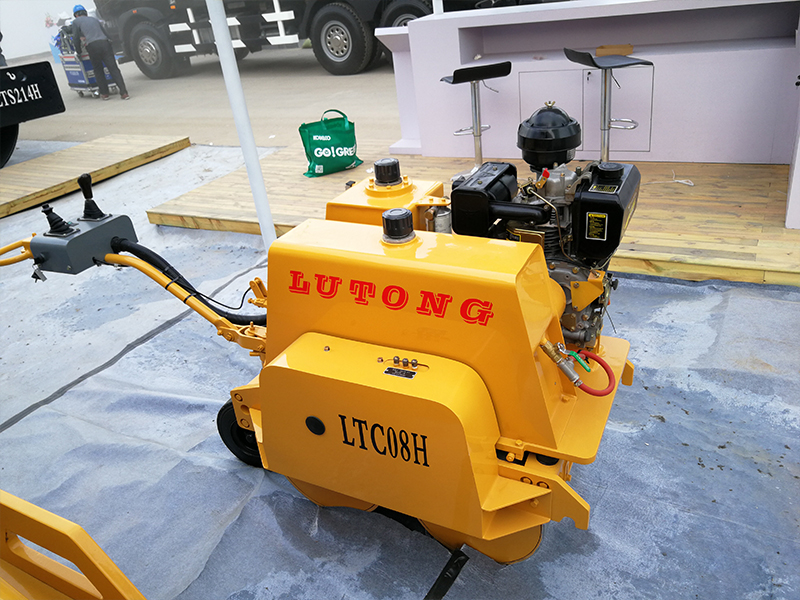

LTC08H ( 0.8T ) Hydraulic drive double drum vibratory road roller

Short Description:

LTC08H Hydraulic walking behind vibratory road roller can be used for municipal road construction, highway maintenance, and rolling work at narrow road surface, such as foundation of groove wider than 0.8m, building construction, backfilling for pipeline and gymnasium ground....

Engine: CF186F
Compaction Width: 2400*880*1100mm
Operating Weight: 770kg

CONTACT NOW

Content details

Main Features

01The whole machine has a nice shape. Compact structure and small size; it can do rolling work in narrow ground

02all wheel drive,strong climbing ability;

03Using CF186F veritical direct-spray air –cooled engine,with both electrical and manual startup devices;

04Desigend with guide wheel and joystick, it is labor saving and easy to control.

05Hydraulic travel, adopt imported punp & starting motor, CVT.

Main technical parameter

MODEL		LTC08H
Operating mass	Kg	770
Static linear load	N/cm	62/62
Vibration amplitude	Mm	0.25
Vibration frequency	Hz	48
Centrifugal force	Kn	12
Travel speed	Km/h	0-4
Grade ability	%	40
Turning speed	mm	2700
Turning angle	。	±30
Overall dimension	Mm	24008801100
Vibration drum diameter	Mm	400
Drum width	Mm	600
Wheelbase	Mm	470
Diesel power/model	Kw	5.68/CF186F
Water tank capacity	L	32

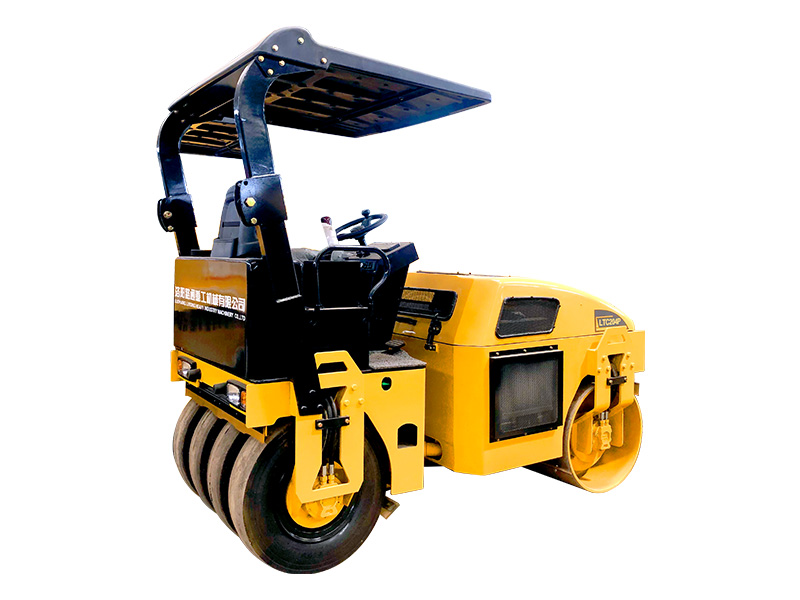

LTC204P ( 4 Tons ) Tire Combined Hydraulic Vibratory Road Roller

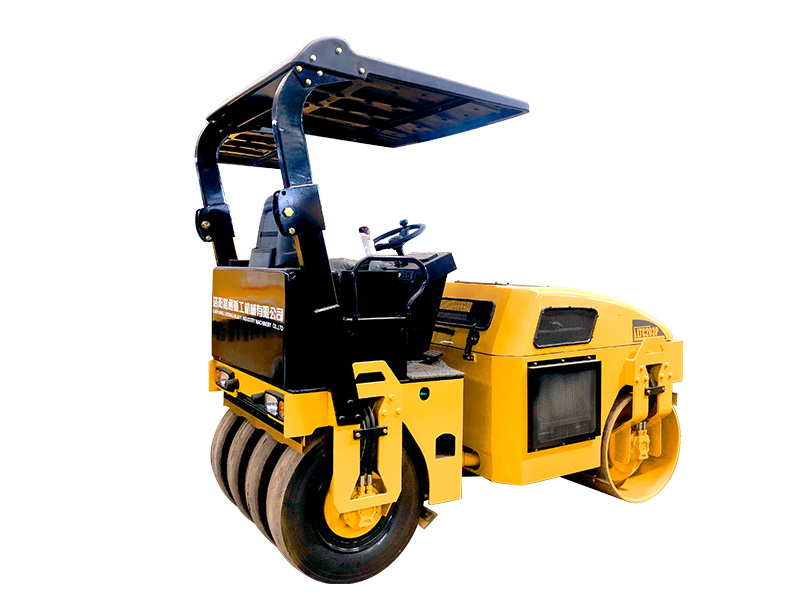

LTC203P ( 3 Tons ) Tire Combined Hydraulic Vibratory Road Roller

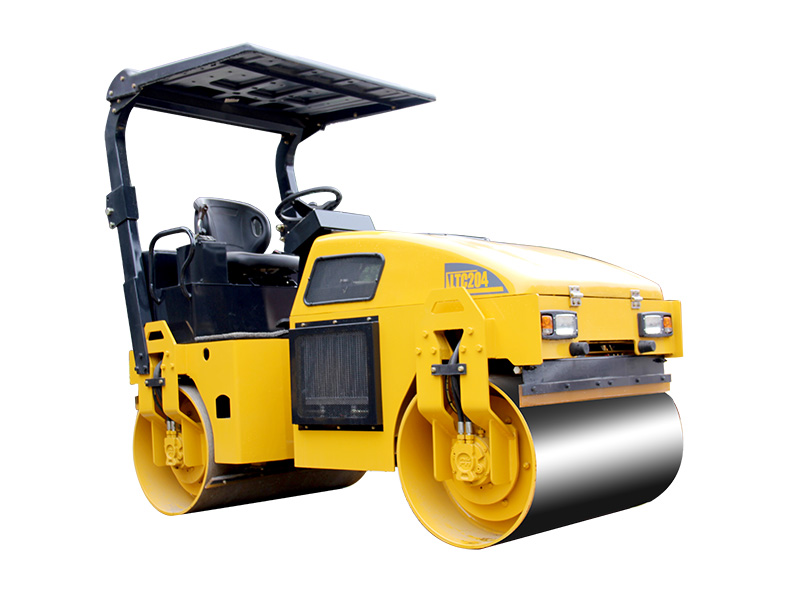

LTC204 ( 4T ) Hydraulic Double Drum Road Roller

LTC203 ( 3T ) Hydraulic Double Drum Road Roller

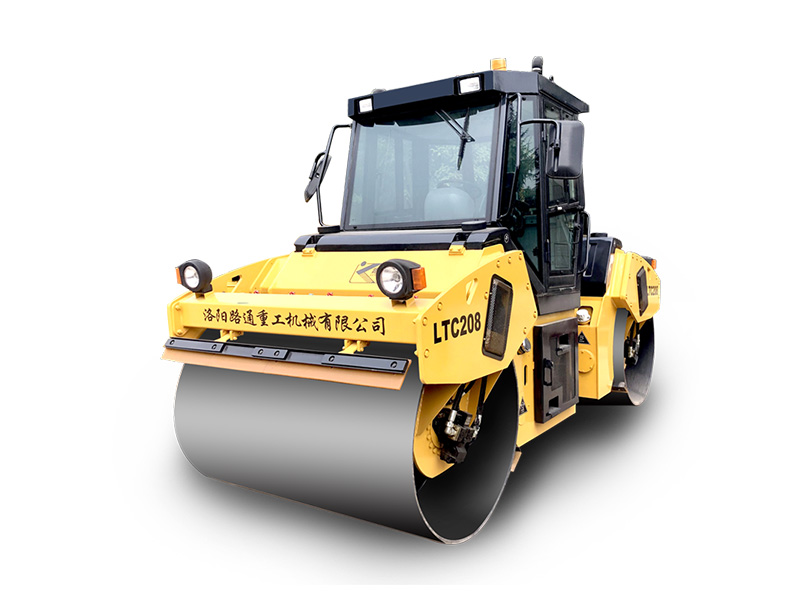

LTC208 ( 8T ) Hydraulic Double Drum Compactor Road Roller

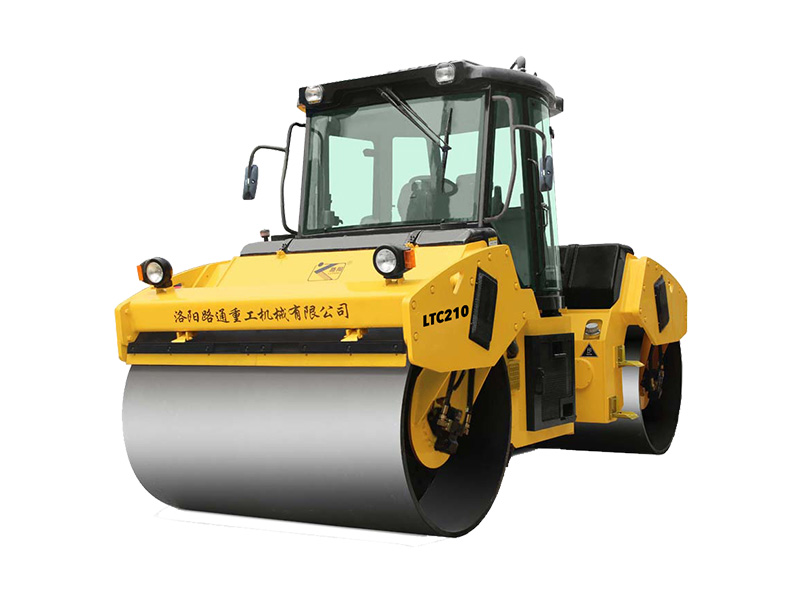

LTC210 ( 10T ) Hydraulic Double Drum Compactor Road Roller

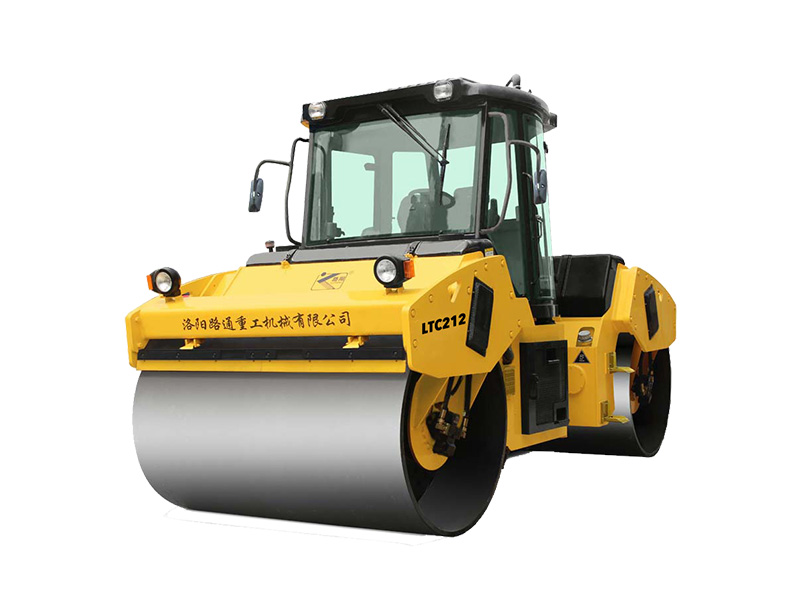

LTC212 ( 12T ) Hydraulic Double Drum Compactor Road Roller

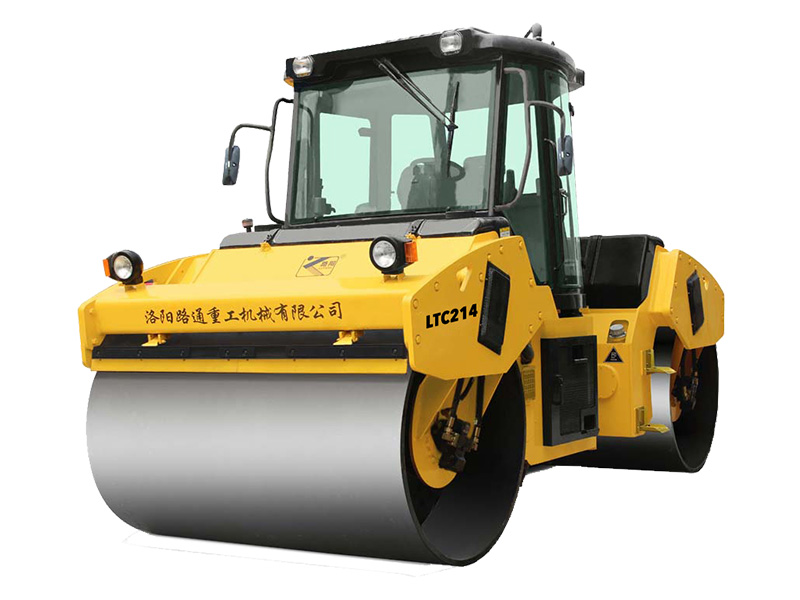

LTC214 ( 14T ) Hydraulic Double Drum Compactor Road Roller

LT210B ( 2WD, 10T ) Mechanical drive single drum vibratory road roller

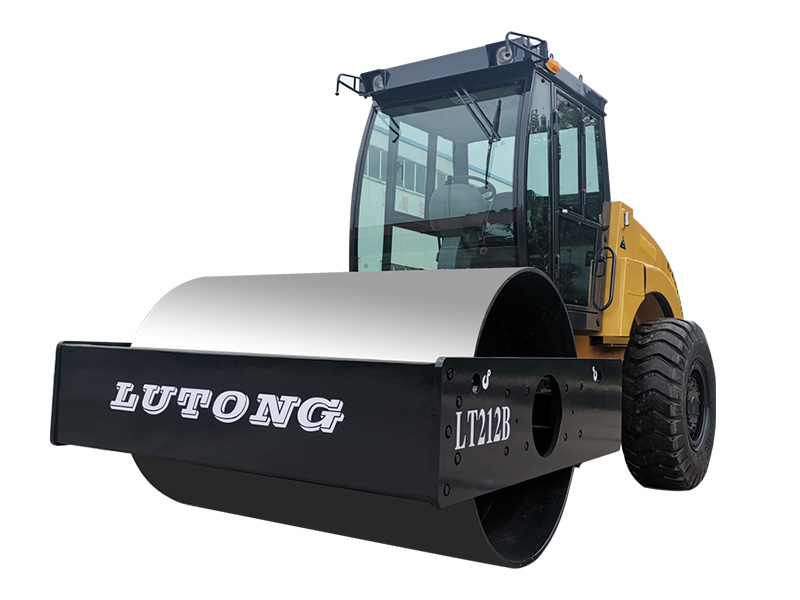

LT212B ( 2WD, 12T ) Mechanical drive single drum vibratory road roller
